Send InquiryProduct Description
1. Sealing machineSF-150W is paint horizontal type sealing machine. It obtains patent of Chinese invention.
2. It can seal plastic films made from various materials continuously. such as plastic film, aluminum foil and complex film etc.
3. Constant temperature control and temperature is adjustable. The conveyor can load 5kgs. This machine has the perfect sealing, high effect, Simple and compact structure, Aesthetically pleasing, advanced technology, low power consumption, Operation maintenance convenience etc.
4. it can print the manufacturing date, batch number and expiry date, etc.
5. It's widely used in food, hardware, chemicals, electronic, etc. This model special for small shop, drugstore, supermarket, factory and so on.
6. Using Chinese 3C certified components. Really efficient and stable.
7. Customize: OEM and ODM available.
8. Certificate: ISO9001, CE.

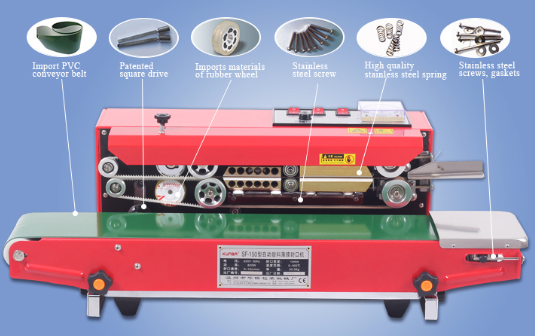

Sf-150 Sealing Machine High-Efficiency & Perfect Steel Printing
Applicable To The Major Industries Oi" Aluminum Foil Bags, Plastic Bags, Composite Bag Sealing,
The Device Has A Solid Seal, High Efficiencyequipment Has A Handsome
In Appearance, Advanced Technology, Low Power Consumption, Easily Operation And Maintenance Advantages.
Technology Parameters
Specification |
|
Model |
SF-150W |
Voltage |
AC 220V/50Hz 110V/60Hz |
Heating Power |
280W*2 |
Motor Power |
60W |
Sealing speed |
0-16m/min |
Sealing width |
6-10mm |
Sealing film thickness |
0.02-0.80mm |
Temperature range |
0-300℃ |
Printing letters |
20 Granule |
Conveyor loading |
less than 5kgs |
Pack size |
860*410*375mm |
Net Weight / Gross weight |
20.5kg/23.5kg |

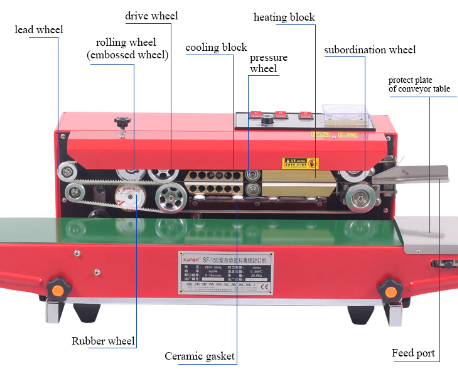

Sf150 Automatic Film Sealing MachineProduct Details

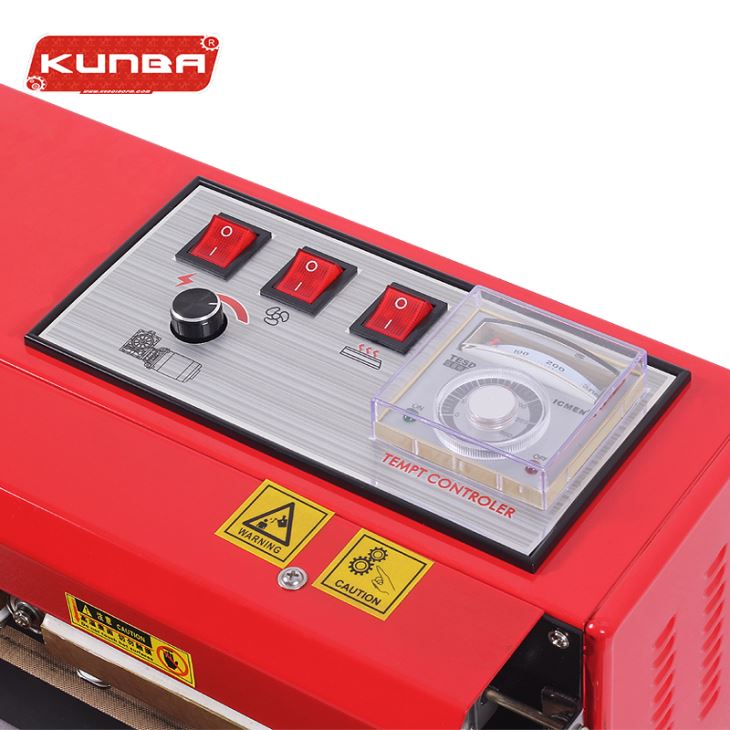

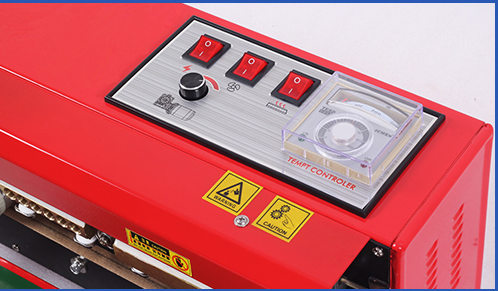

01.Simple Operation Panel
Simplepanclsimple Operation,Heating Bar Temperature, The Temperature Can Be Seen To Make Your Operation Comfortable.Built-In Motor Speed Controller And Print Position Controller,Motor Speed And Print Position Separately Controllable, Easy To Afiust And Easy To Operate.

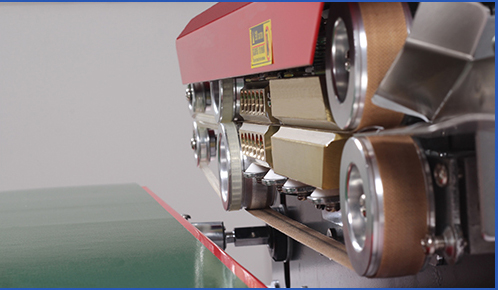

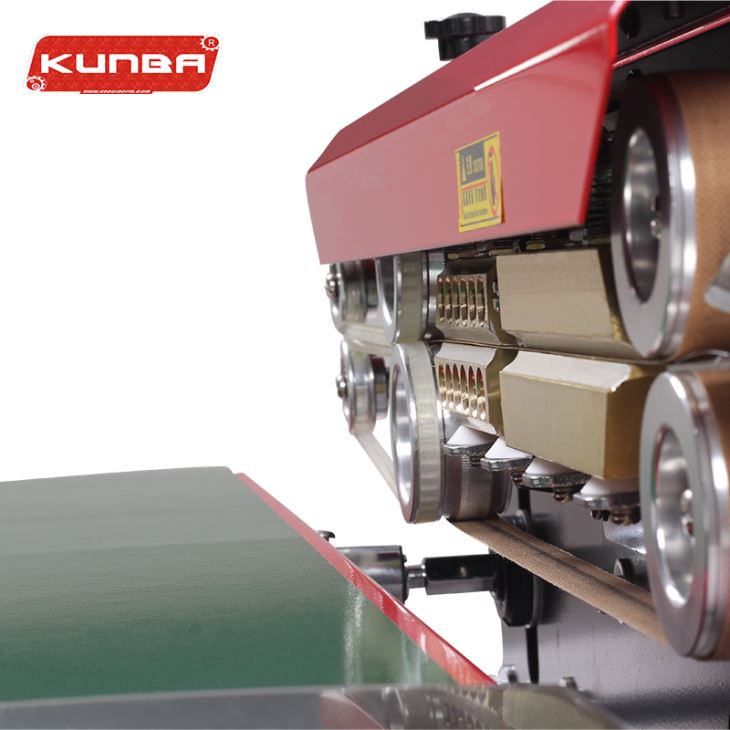

02. Sealing Parts

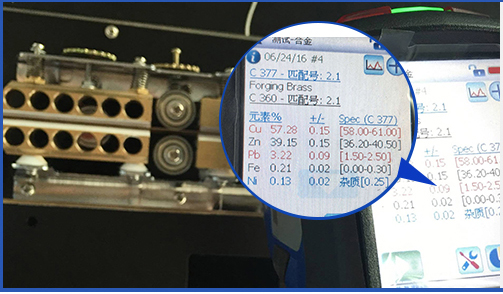

H59 Brass With Bold Widening Heating Block, High Strength Is Not Easy To Deformation,Corrosion Resistance, More Uniform Heating And Longer Service Life. Upper And Lower Ends Of Heating Blocks Cooling Block All Have Thermal Pads To Prevent Heat Transfer To The Body- Cooling Fan Cooling Blockheat Fastermore Stereotypes Of More Beautiful.

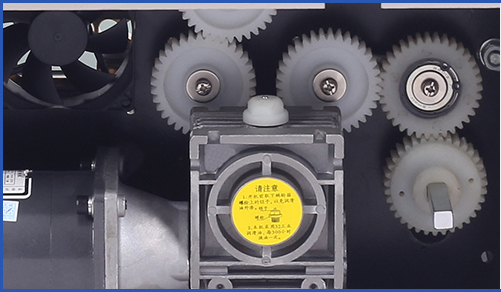

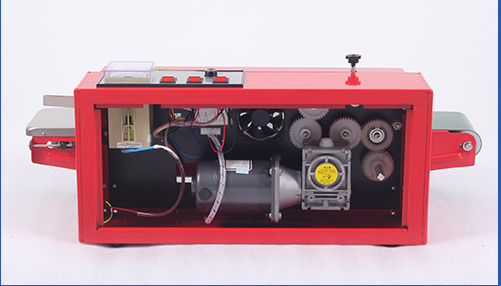

03.Integration Of The Motor &Amp; Gearbox
Adopt The Design Pn'nciple Of Oman Integration Will Be High Transmission Efficiency, Low Noise, Cooling Fast, Savice Life Is 3-5 Thus Higher Than Similar Products.
04.Conveyor Table Guard
Adopt Stainless Steel Matexial Without Comer Anti-Knock Damage,More Humane, More Secure-

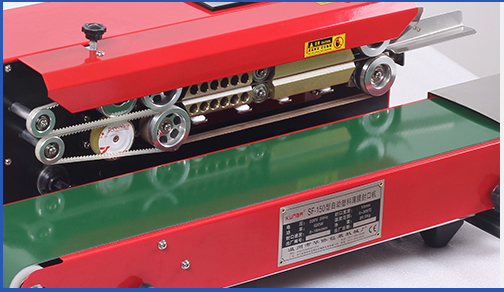

05.Fine Workmanship
The Mechanical Transmission Accurately Fits The Heating Block,Sealing Effect Is Better.
06.Imported Industrial Nylon Gear
Imported From The Netherlands Industrial Nylon Gear, Smooth Transmission, No Noise, Longer Service Life &Amp; Wear. (If The Nylon Gear Is Damaged, It Can Be Free Replacement For Lifetime.)

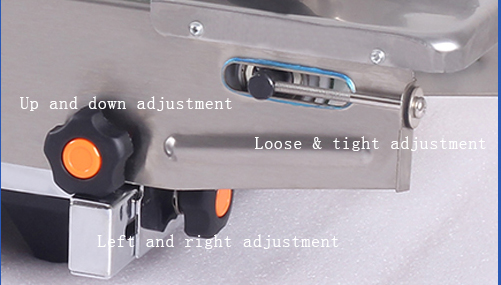

07.Table Can Be Adjusted
Up And Down, Front And Back Of The Conveyor Can Be Adjusted,It Can Be Adjusted According To Actual Needs To Improve Work Efficiency.
Other specification table vacuum sealer also could be produced
