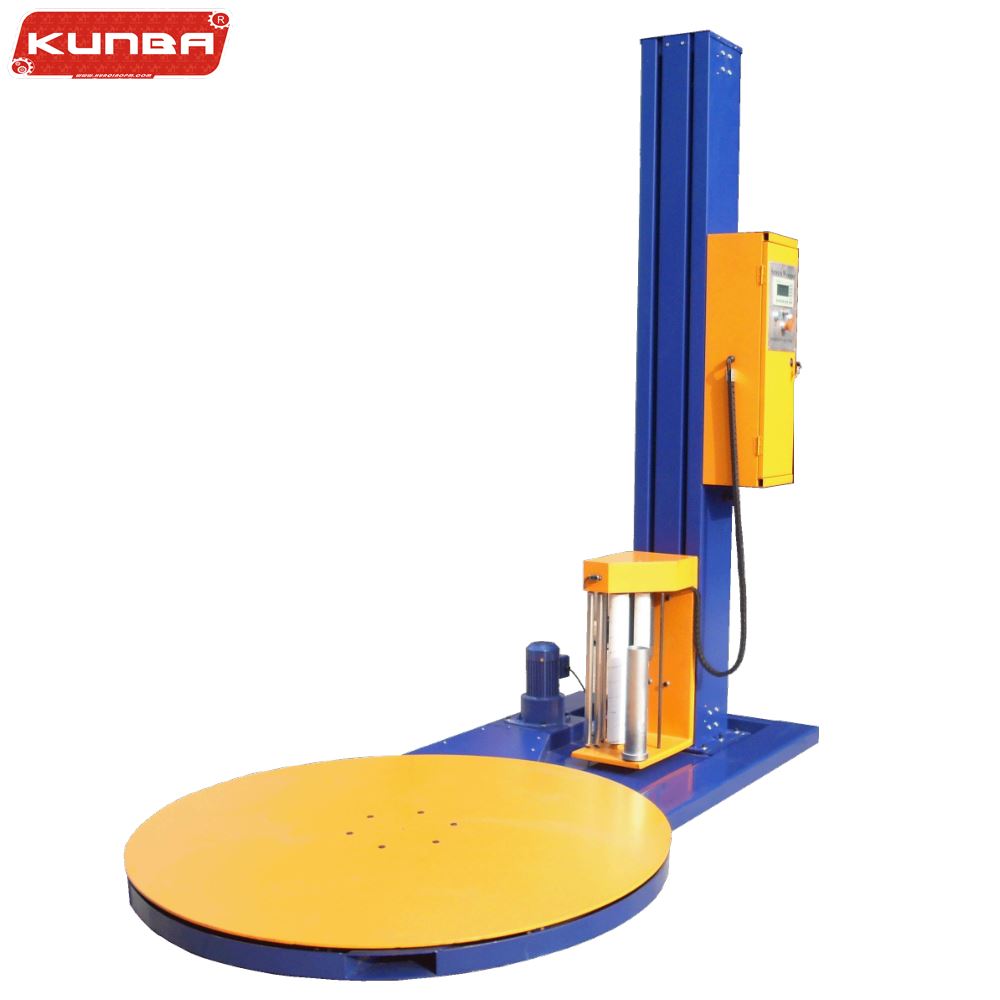

Stretch wrapping machines are used to wrap stretch film around a loaded pallet. Film provides extra support while the products are being transported & stored to protect them from tip, spill or from being damaged. Additionally, wrapped loads can easily be separated and identified. Automatic stretch pallet wrapper is widely used in chemical industry, electronic industry building materials home appliances papermaking foodstuff & drink etc
Send Inquiry
Technical Parameters
Model |
T1500, 1650,1800. |
Control System |
PLC+ Screen control |
Diameter of turntable |
1500mm(optional) |
Max pallet height |
2000mm(optional) |
Max pallet weight |
1500kg(optional) |
Film reel inside diameter |
75mm |
Film reel outside diameter |
250mm |
Turntable speed |
1-12 cycles/Minute |
Turntable height |
85mm |
Turntable motor |
0.75kw |
Film-rack lift motor |
0.18kw |
Power supply |
220V 50HZ 1Phase or 380V 50HZ 3Phases |
Shipment dimension |
2720*1740*710mm |
Weight |
800kg |
